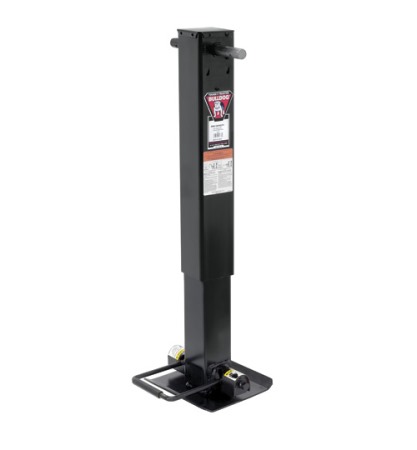

Bulldog 25K Twin Cam Spring Loaded Sidewind Dropleg Jack 12.5"

Free Shipping exempt due to shipping size and/or weight. Shipping weight reduced by 25%.

This is The Industry's Strongest Drop Leg Jack.

• 12-1/2" Lift
• 13-1/2" Drop-leg travel
• 4" Tubing width
• Spring loaded leg
• 12,000 pound Lifting capacity
• 25,000 pound Static capacity
• 10" x 10" Square footplate
• Limited 5 year warranty
• Crank handle is sold separately

This Bulldog Twin Cam Jack features a convenient, enclosed pin mechanism with twin cam action that makes this heavy duty, drop-leg jack the industry standard.

The Bulldog twin cam drop-leg mechanism allows an increase in the vertical static capacity by using two 3/4" pins to transfer the forces between the drop leg and the inner tube of the jack. The unique twin cam drop leg mechanism actuates the drop leg pins in both directions, which gives you full control over engagement and disengagement of the drop leg pins. This design doesn’t rely on spring pressure alone in order to keep the pins in the locked position.

The mechanism keeps dirt & debris from interfering with the engagement of the drop leg pins and maintains tighter alignment between the drop leg tube and inner tube by having engagement on both sides of the drop leg tube. An easy access grease fitting allow for lubrication of internal jack gears and the jack screw, nut.

The patented screw stop prevents screw and or nut damage when the jack is fully extended. This keeps the screw in good condition for maximum screw, nut cycle life. The drop leg features 5 positions with 13.5" of adjustment.

10" X 10" heavy gage steel foot plate.

Heavy duty 1" diameter steel input shaft.
