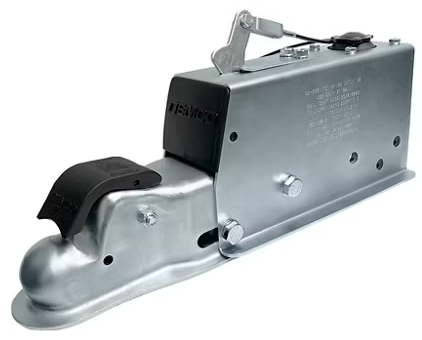

Demco 2" Hydraulic Drum Brake Marine Actuator

This is a Demco 2" Hydraulic Drum Brake Actuator Zinc Plated with a 6,000lb Capacity DA66.

These Demco hydraulic trailer brake actuators are specifically designed to perform in the harshest braking environments. The master cylinder cap has an automotive style diaphragm for a completely enclosed brake system, and prevents brake fluid contamination. The master cylinder pushrod is covered by a rubber boot for additional dirt and moisture protection. Utilizes UHMW nylon wear pads, which eliminates the potential for roller freeze-up.

This composite master cylinder is maintenance free, providing a long life for both disc and drum braking systems. All components are available for easy repair.

1⁄2" x 4 1⁄2" grade 5 bolts are required to mount this actuator. This has a 600lb. maximum tongue load or 10% of G.V.W.R of coupler, vehicle, ball or trailer. DA66 actuators utilize acetal copolymer linings. Rollers are eliminated.

• 6,000lb Towing Capacity.
• 600lb Maximum tongue weight.
• 2" Ball Size.
• Mounts to 3" wide trailer tongue.
• Zinc plated finish.
• Bolt-on installation.
• 1-Year warranty.
• Made in the USA.
