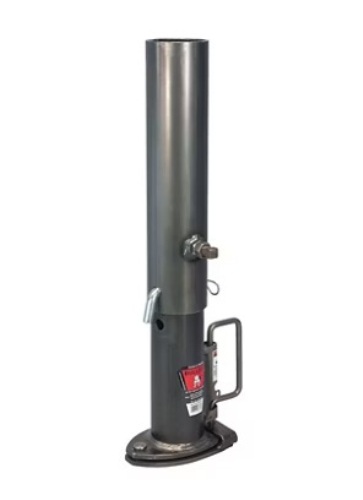

RAM 25K Gooseneck Coupler

This Ram 2-5/16" Round Adjustable Gooseneck Coupler has a 25,000lb Capacity. This new cast head design features a one-piece coupler casting with a curved internal ball clamp bar. The curved internal ball clamp bar secures the coupler to the hitch ball. This allows for easier coupling & uncoupling, as it doesn’t have a separate bottom plate. Features a hidden spring latch mechanism within the casting for ease of use and the protection of moving parts.

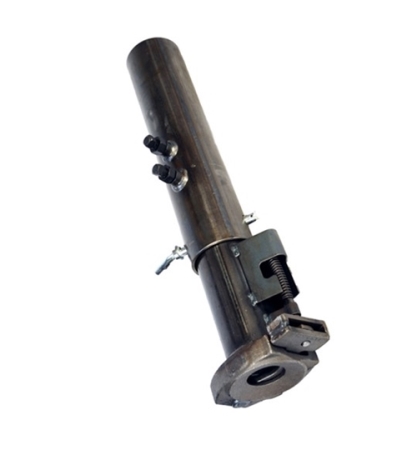

This round gooseneck coupler fits a 2-5/16" ball and includes an inner and outer tube, 2 set screws and pins. The inner tube is adjustable so that you can match the coupler height to the application. The outer tube welds onto the trailer, and the inner tube slides up or down for proper positioning.

• 2-5/16" Ball size
• 29-1/2" Length not adjusted
• 37-1/2" Length fully adjusted
• 4-1/2" outer diameter on outer tube
• 4" outer diameter on inner tube
• 25,000 pound capacity.

Free shipping exempt due to product size and/or weight. Shipping reduced by 20%.
