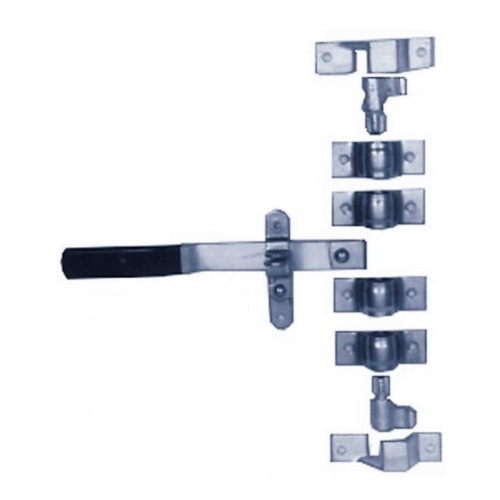

Universal Cam Style Door Latch

This Universal Cam Style Door Latch 5654X plain finish steel cam-lock is designed for all van bodies, trucks, and trailers, and can be used for side or rear door applications. The lock can be installed on flush to 3/4" offset doors. The bridge-type keeper prevents accidental opening and ensures a safe locking action. A positive double-action handle provides dual protection against any while jarring in transit.

• Uses a 3/4" ID pipe, which is Not Included.
• Handle welds to the pipe.

1/8" Thick pipe retainer straps.
1-3/4" Maximum lock protection.
1/2" Square padlock or seal eye.
1-7/8" Keeper width.
13/32" Diameter of mounting holes.
The Handle is 13-3/4" in length.
