Edge-O-Dock Leveler, Hand Pump, 20K, 72" x 27"

The price shown does not include shipping. Please Contact Us prior to ordering for a total inclusive price.

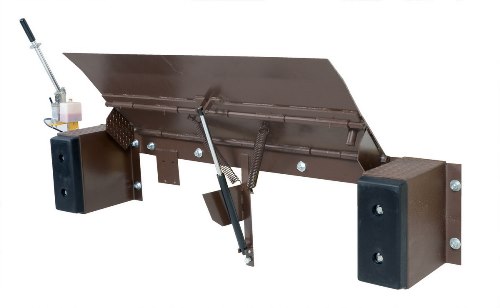

This Edge-O-Dock leveler permanently attaches to the face of the dock. It is recommended for docks that are at least 48 inches in height. When the trailer departs, the lip will drop automatically behind the face of the bumpers. This comes complete with bumpers as well as installation instructions. Standard Ramping is 29 inches, with a 36-5/8 inch long ramping length available for a smaller grade. A steel dock edge, or approach ramp is required for proper installation of the unit. The Hydraulic Hand Pump system is used to lift the leveler and to extend the lip. The operator rotates the relief valve, which allows the deck to descend down and rest on the trailer. It comes complete with hand pump, wall mount brackets, cylinder, a 180” hydraulic line, and oil. The truck must pull out for the leveler to return to the stored position. Manufactured by Vestil Mfg.

Models FM/PP/PE 3066 and 3072 are 29-13/16”, with a 36-5/8” long ramping length available.

• Hand Pump Operation.
• Usable Width is 72”.
• Weight Capacity is 20,000 Pounds.
• Weighs 627 Pounds.

Available Upon Request:

• Approval Drawings.
• Warranty.
• Testing Certificate.

The price shown does not include shipping. Please Contact Us prior to ordering for a total inclusive price.
